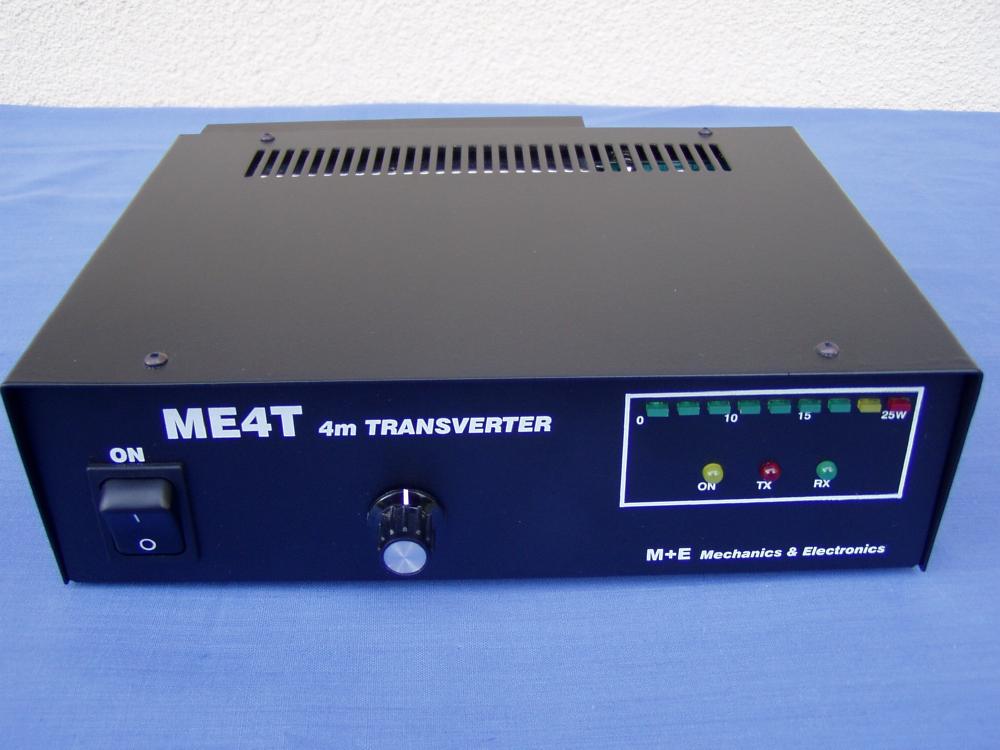

ME4-T 4m transverter specifications

• Frequency Coverage: 69-71MHz band.
• IF in/out frequency : 27-29MHz
• Power Output: >30W continuous carrier.
• IF power input: -20 to +37dBm ( switchable built in attenuator)
Single or two IF cable operation.
• Harmonic Output Suppression: Better than 50 dB below rated output.
• RX gain: cca.22dB
• RX noise figure: <2dB
• RX intercept point (IP3): +7dBm

• PA RA30H0608M Mitsubishi module

• Input and Output's:

   - ant connector 50 Ohm unbalanced, UHF type connector.
   - input IF connector BNC type (50 Ohm)
   - output IF connector BNC type (50 Ohm)
   - SND external PA PTT red RCA( open collector, +50v,0.2A max)
   - PTT input black RCA, (RELAY contact, or open collector, 13.8V,0.04A)
   - Output (antenna) impedance matching capability: VSWR up to 3:1

• Power supply: external, 13.8V/5A DC.
• Size & Weight : WxDxH: 240x210x70mm 1.5kg
• Operating environments:
   - temperature range: 0...+50 degs.Celsius;
   - humidity: up to 95% @ +35 degs.Celsius.
