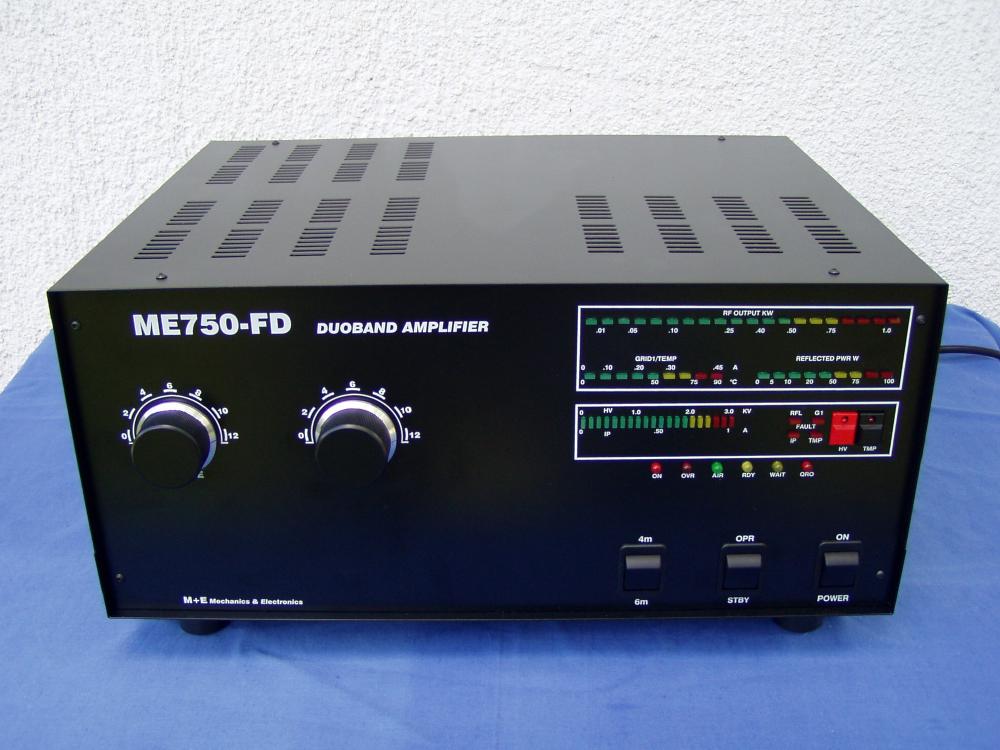

ME750-FD  specifications



Specifications

Photograps

Manual

Diagram

Back





Frequency Coverage: 50-52MHz and 70-72MHz amateur bands,switchable.(different 4 and 6m inputs, common output)

Power Output: 1000W PEP or 750W continuous carrier on both bands.
Intermodulation Distortion: Better than 35 dB below rated output.
Hum and noise: Better than 40 dB below rated output.
Harmonic Output Suppression: Better than 70dB below rated output.
Input and Output Impedances:

   - nominal value: 50 Ohm unbalanced,3x UHF (N) type connectors;
   - input circuits: tuned, VSWR <1.3:1
   - Bypass path VSWR < 1:1.3, 4/6m continuously, 100 W maximum;
   - Output (antenna) impedance matching capability: VSWR up to 2:1

Protection circuits:Ia>1000mA,Ig1>300mA,TMP>75C,SWR>2
RF Gain: 12dB typically, frequency response < 1dB (40-50W drive power for
   rated output on both bands).
Built in 3-way PIC controlled sequencer.
Primary Power: 220-240 V AC, 50-60 Hz, single phase, 1600 VA.
Complies with CE safety and electromagnetic compatibility requirements.
FAN :built in 230V/13W AC fan PAPST type 4605,12V/0.15A DC FAN
- optional 120m3 radiall fan is available.
Size & Weight : WxDxH: 410x340x185mm,~ 25kg

Operating environments:
   - temperature range: 0...+50 degs.Celsius;
   - humidity: up to 95% @ +35 degs.Celsius.
   - height: up to 3000m above sea level without output deterioration
