ME4T-PRO 70MHz Transverter



ME4T-PRO High Performance 4m transverter

After the successful ME4-T transverter project we decided to build the -PRO version of this transverter.
The ME4T-PRO is a new generation high performance transverter with modern 3rd generation components, has low noise,
very good dinamic range on receiving section and clear and very stable transmitting signal.
The built in  low phase noise TCXO provides easy work also on FSK modes.( Optional AXTAL 0.5ppm TCXO is available!)
The transverter can work between 69.9-72MHz  with low RX NF and high IIP3 and OIP3.
The  Mitsubishi RF module provides good IMD signal and 30W output power.
Special thanks for HA8ET for the RF simulations and the most RF design.
You can find the block diagram of the mixer unit here.
Before first operation check the transverter setup. description.

Local Oscillator

The high stability  TC23-5T  type  PDI TCXO ( <1ppm btn 0-50degr. C )with low phase noise  gives 3dBm signal on 42.000MHz. The TCXO frequency can be adjusted with inner trimmer capacitor(+-2ppm) but it's not necessary because the stability is better than +-1ppm/ Year.
AXTAL 0.5ppm TCXO is also available for request.
The output signal of the LO is about +17dBm, it produced by ASB ASL550 3rd generation MMIC. The built in 2x 5th order filter provides clear output signal,lear, the 2nd harmonics is lower than -70dB. We using two stage LO amplifier on case high lever RF mixers( +22dBm)

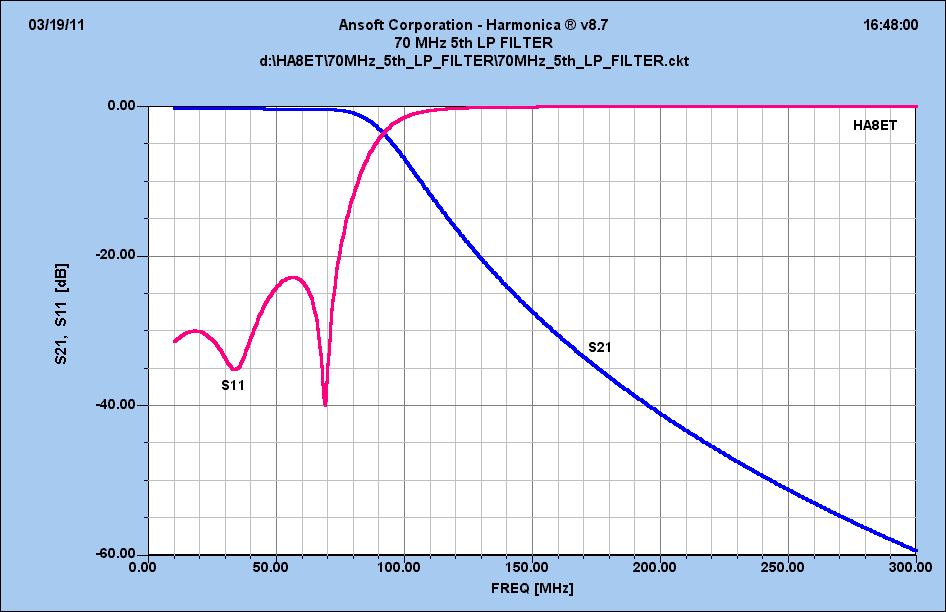

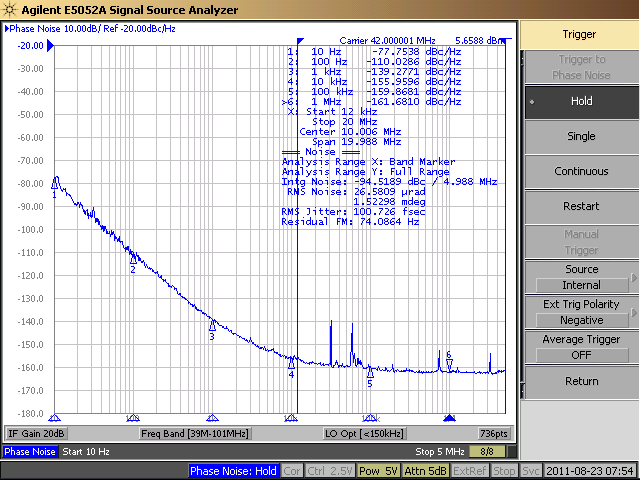

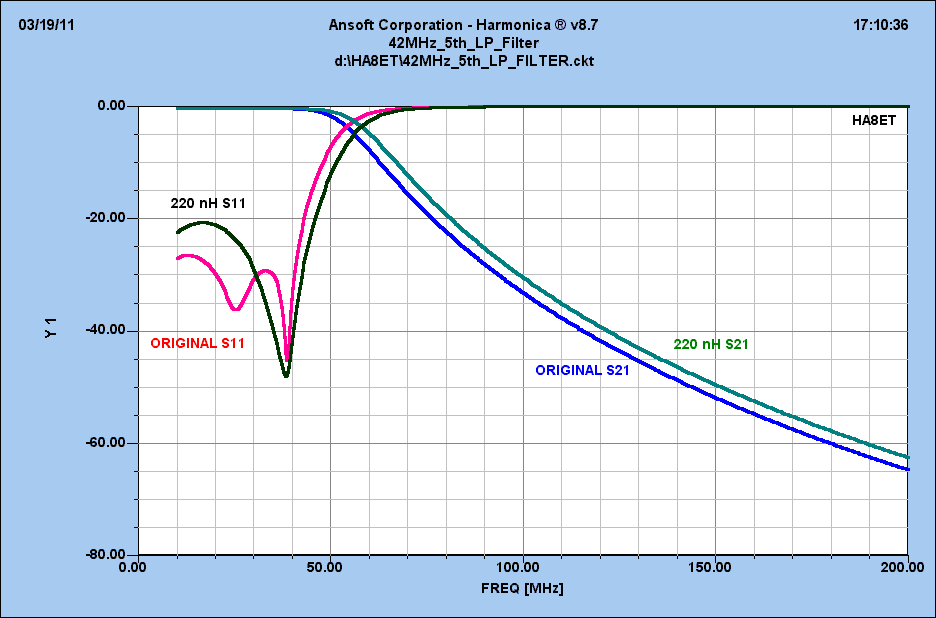

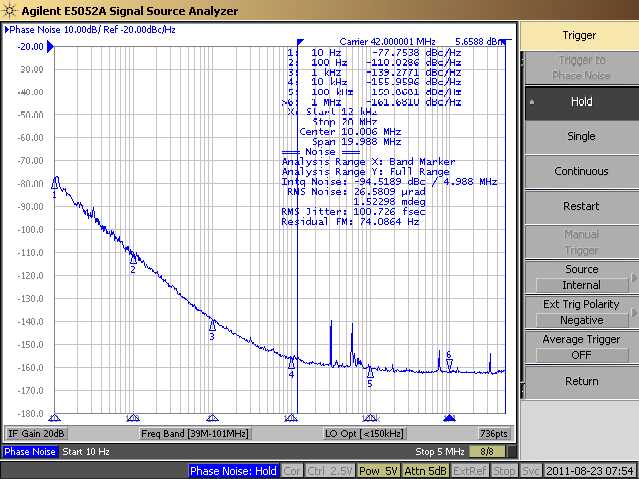

                                    The simulated caracteristics of the 5th LPF filter:                              The measured 42.000MHz TCXO phase noise:


We can check the +20dBm output signal on M3 measureing pin.This signal is attenuated by -10 and -3dB attenuators to the TX and RX balance mixers.
We using SRA1-H type +17dBm RX mixer.Optional +23  mixer is available.
In case the optional +23dBm  RX mixer (SBY-2S) we built in 2nd ASL550 amplifier. We can check  the real RX and TX signals on M2 and M1 points with DC voltmeter.


The 69.9-72MHz input signal passes through the input filter to the input of  PGA-103+ LNA. The gain is approx. 20 dB, the noise figure is 0.8dB
the OIP3 is >26dBm! PGA-103+ has an exceptional performance of low noise figure, high gain, high OIP3, and low bias current. The stability
factor is always kept more then unity over the application band in order system environment.
Impedance of the MMIC is 50 Ohm both I/O - it provides easy connect on the output 3rd order BPF.
PGA-103+ low noise  and high dinamic range version is available from January 2013.

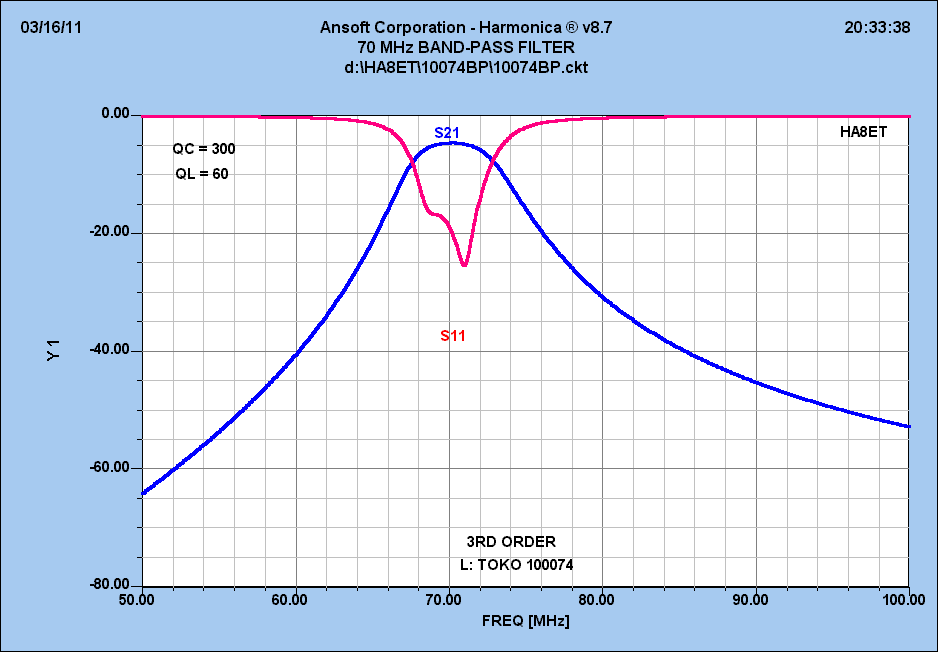

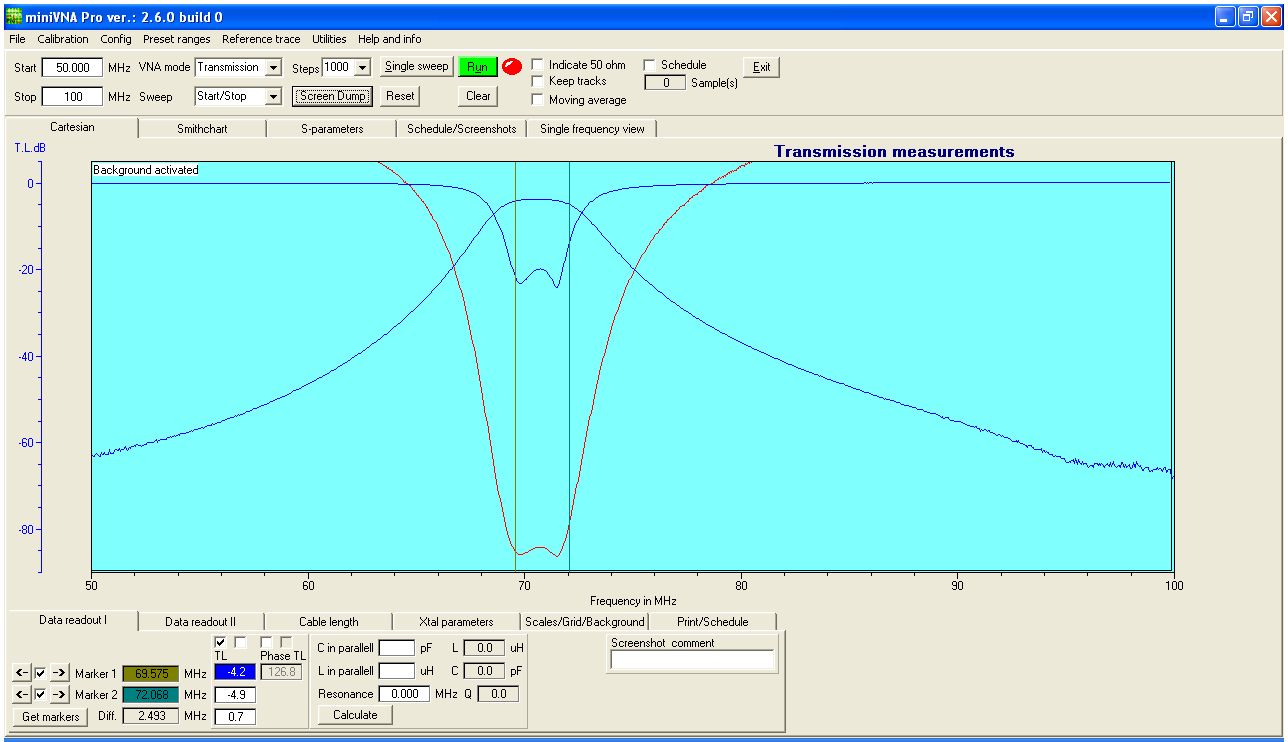

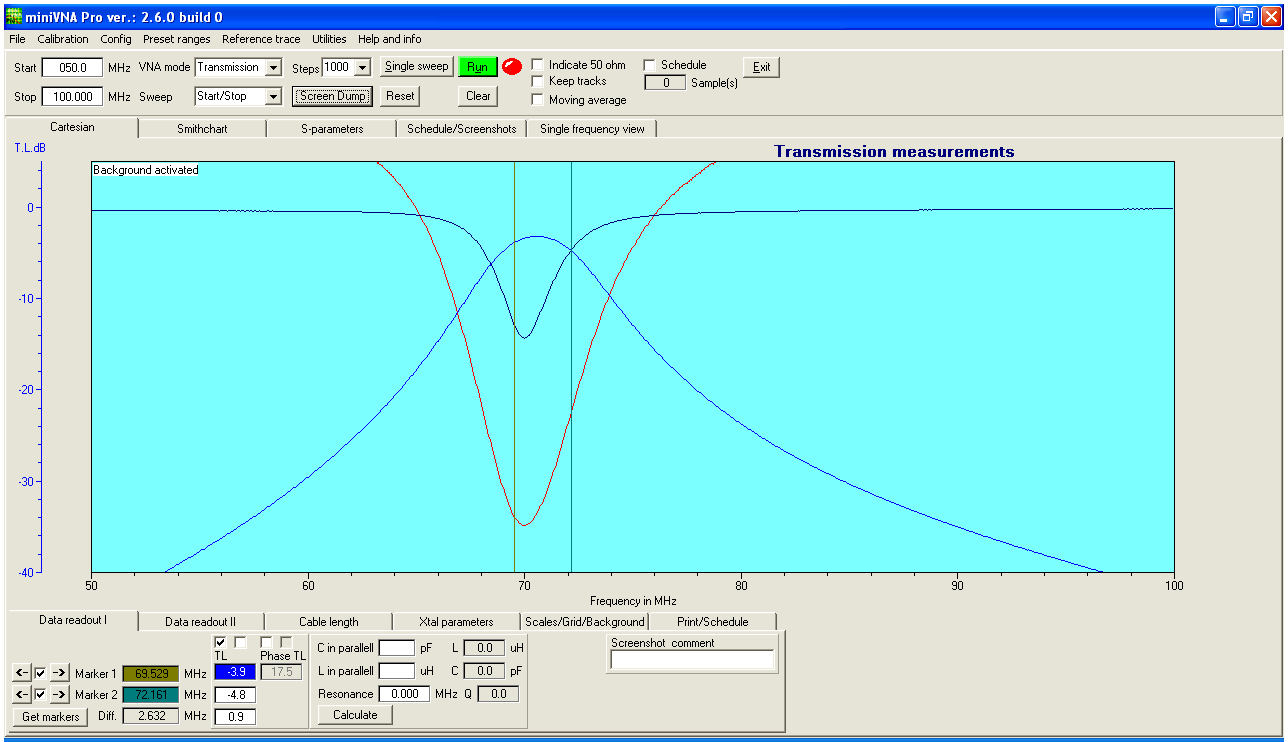

                                        The simulated caracteristics of the 3rd BPF:                                     Measured 3rd order BPF:

The 69.9-72MHz signal goes through the band pass filter providing a suitable selectivity. The balanced mixer MX1 mixes the input signal down to 27.9-30
MHz loosing approx. 4 dB in the process.  The  IF signal is amplified approx. 10 dB in a low noise high current J-FET's (2x J310). The final PI  filter
increases the selectivity considerably. The output signal is can set to optimal value with the RX gain potentiometer.

Chracteristics of diplexer unit:                                                                                Caracteristics of 28MHz LPF filter:


The transmit mixer, MX2 only needs approx. -10dBm 28 MHz IF signal from the transceiver. A suitable level can be achieved by adjusting
P2(TX) in the attenuator. Lot of transceivers  has lower or much higher IF output level. To solve this problem we built in
an additional jumperable  and variable 5W/-20dB attenuator. You can switch on/off  easy the attenuator with different jumpers.
The fine level setting possible with the potentiometer P1 on the attenuator unit across the slots of the top cover.
We solved the very low level IF output problem of most ICOM radios. We built in +15dB jumperable IF amp.
So, ME4T-PRO is usable with -20dBm IF input level radios.
The 70 MHz TX signal behind the MX2 mixer is  filtered through a two-stage band-pass filter  before being amplified in a BF996.

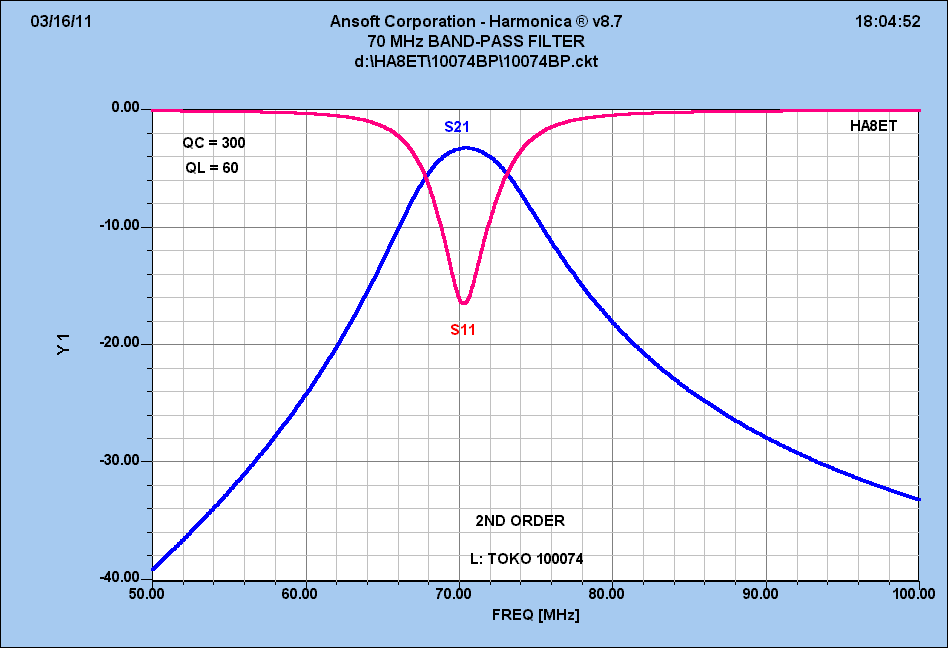

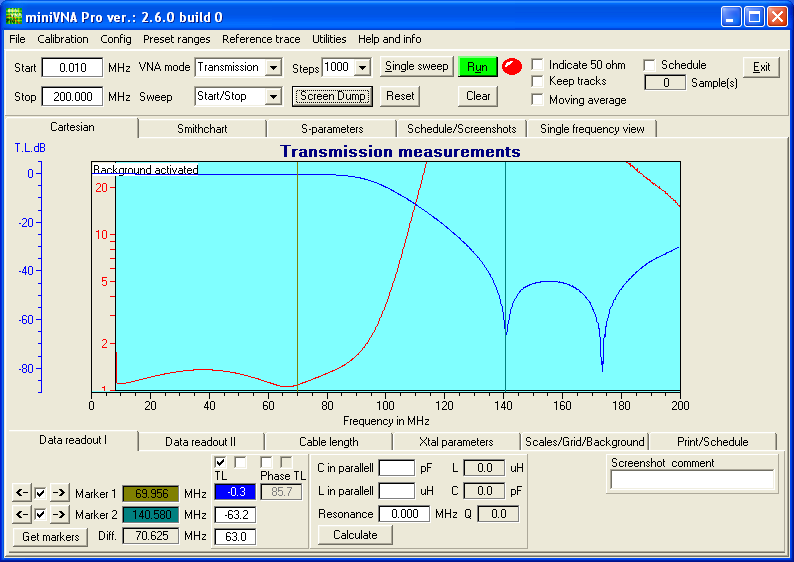

                        Simulated characteristics of the 2nd order BPF:                                                        The measured characteristics:


The G2 of the BF996 connects to the ALC circuit on the control unit and to the rear panel PWR potentiometer. We can reduce the final output power to about
The controlled gain BF996 amplifier continues the final ASL550 amplifier to a level exceeding more then 100 mW. Through the final pi-filter we can
reduce the harmonics of the TX signal.

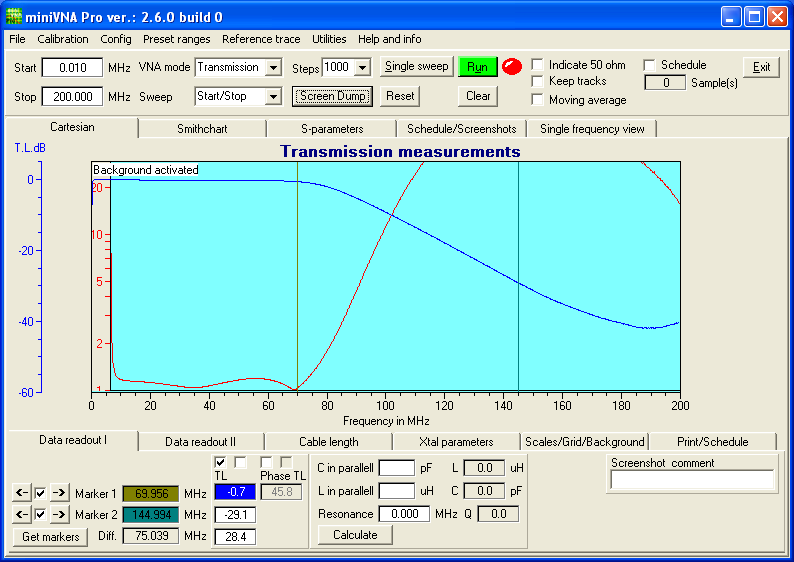

Simulated 70MHz LPF :                                                                                        Measured 70MHz LPF:

4m module PA unit

We constructed >25W output amplifier to the base transverter unit. It's built  with RA30H0608M Mitsubishi module, by Mitsubishi datasheet and
The output signal of the transverter drives the RF module across -3dB attenuator. We set the RF module to AB1 class by a simple circuit applicated by
The output signal led to "N" type  4m ant connector across a harmonics filter and a built in NEC EB2-12NU type smd RF relay.
The final unit has MONI output to check the output power connecting to the control unit LED bargraph PWR meter and ALC circuit.
The PA contains simple temperature sensor to check the temperature of the heatsink.

4m final LPF filter:                                                                                       ME4T-PRO spectrum: ME4T-PRO_spectrum (pdf)


In order to monitor output power, we use an LM3419 based LED bargraph, implemented on the DP6 control unit. You can find  the high
current DC relay too on this PCB, together with the ALC circuit  and the circuit of the external fan speed regulator. The external (optional) fan's speed is reduced by 50%  during RX state.
 In case of long TX periods, when the final PA module's heatsink temperature exceeds normal, then the circuit increases the speed of the DC fan. . The speed depends
on the heatsink temperature. We can calibrate the normal fan speed with the P2 , the ALC level with the P3 potentiometer.
The  LEG-12 relay is switching the Vpp voltage to the PA unit. The calibration of the output power is possible with P1 pwr potmeter on the DP6 controller unit.

Switch/attenuator panel

People use different IF level transceivers from home or / portable operation. The jumper selectable attenuator solves the problem; let it be either high or low level  IF signal transceiver.
 You can either set ON or OFF the 5W attenuator, what is more, and you can also easily choose single or dual cable IF operation with these built in jumpers.
The unit contains switching circuit associated to the  external PA's (red colour RCA, SND output, (capable to switch max +50V,1A)

The PTT circuit uses two MJD127 devices on the tranverter unit for the RX/TX switching.TX when the PTT is grounded.
 The PA circuit includes a sequencer, providing suitable delay in the TX key signal when activating first the relays of the external PA relay, then the antenna relay and first stage of RF module of the transverter. This means that the TX output  is delayed approx. 50 ms after the antenna relay is activated.
The antenna relay of the ME4T-PRO and the external PA switches without any TX signal present.

Position of built in attenuator jumpers

Low PWR IF input (-20..+27dBm)
2x IF cable connection

Low PWR IF input (-20..+27dBm)
1x IF cable connection



J5 ON OFF(ON-2nd RX)

High PWR IF input (27..+37dBm)
2x IF cable connection

High PWR IF input (27..+37dBm)
1x IF cable connection



J5 ON OFF(ON -2nd RX)

If you use single IF cable between your radio and the transverter, you connect it to transverter IFin BNC.
In this case the IF-out connector is not in use. If you want to use a 2nd (e.g. SDR) RX, then switch J5 into ON state. (Only in case of single IF cable mode!)
Don't forget to connect the PTT cable between radio SND connector and ME4T-PRO  PTT input! Otherwise  the IF power (5W) kills
the transverter IF output part.( in case single IF cable high IF level mode) The RX output is protected by antiparallel diodes but it does not help in case high IF power!
Never apply more than 5W IF level to the attenuator!
In order to protect the RX of those who forget to connect the PTT line, we built in an IF RF VOX circuit in the new version. (issued following Sept. 2012).
The RF VOX interacts at an IF level exceeding +27dBm, but only in case single IF cable mode.

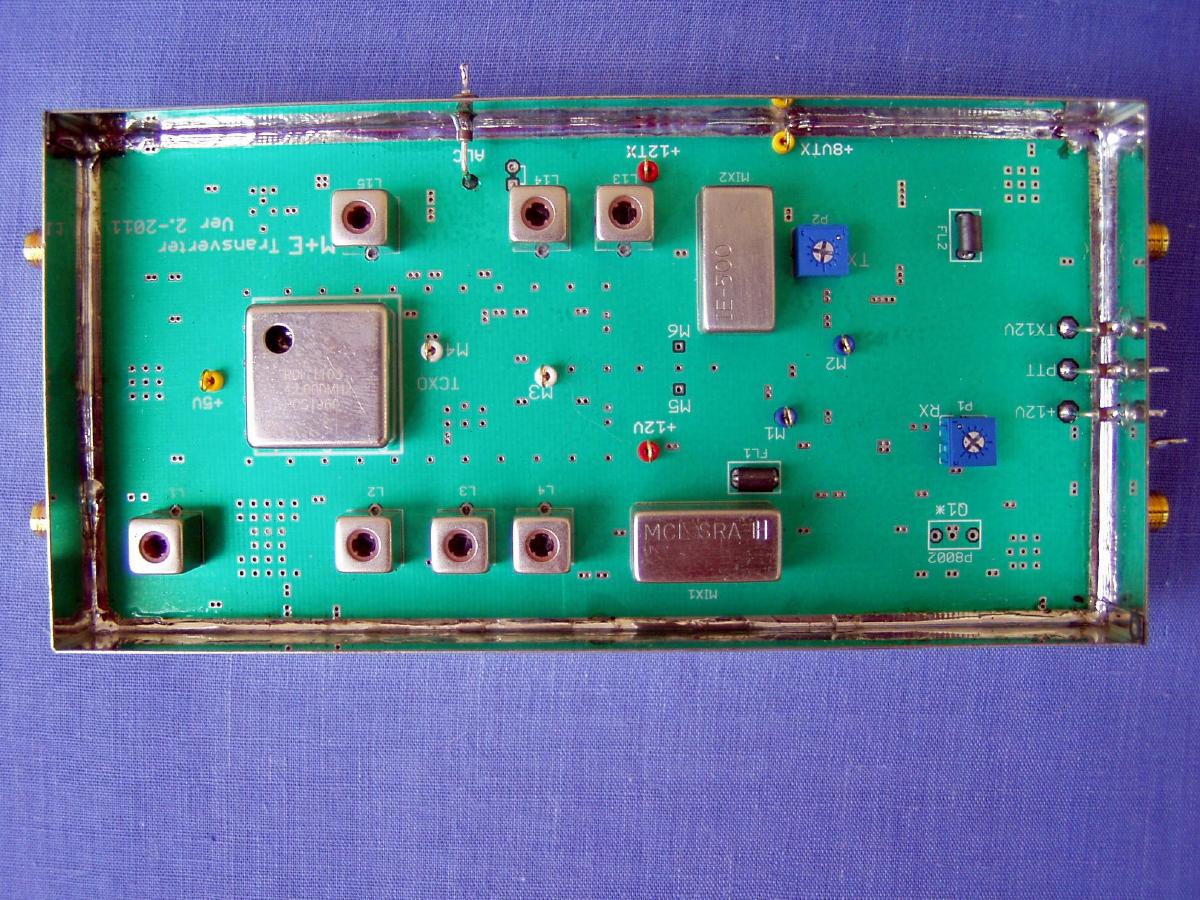

The base transverter is built on a 1,5 mm double sided glass-fibre epoxy PCB; it is fitted into a standard metal sheet box measuring 148 x 74 x 30mm.
PA unit is fitted into 148 x 55 x 30mm standard box. Both are manufactured with SMD technics.
The external box of the transverter is constructed from 1mm painted iron plate. The heatsink is 150x55mm ALU  heatsink material.
If you use the ME4T-PRO continuously on FSK mode you can order optional fan module (2pcs 50x50mm DC fans on  holder plate).
No overheating problem occours in  case normal room temperature while operating on CW, or SSB and contest mode.
You can find on the front panel the ON/OFF switch, the LED bargraph power meter, the PWR potentiometer. The latter reduces the output power to a desired level,  max. down to to 5-6 Watts to drive for example an external  FET PA's.
Any comments, suggestions welcome!


Frequency range                                                     69.9-72MHz
IF frequency range                                                 27.9-30MHz
Emission modes                                                     CW,SSB,FM,Digital
I/O impedance                                                       50 Ohm/unbalanced  Ant-"UHF" type, IF 2x BNC
Operating temp. range                                            0-+50C
LO accuracy @ 20C                                              1ppm PDI TCXO
LO accuracy @ 0-50C                                           +/-1ppm PDI TCXO ( +/-0.5ppm with optional AXTAL TCXO)
Input voltage                                                           13.8V +/-5%
Power consumption                                               0.45A on RX, 5A/TX
IF power input                                                       -20...+37dBm
IF input VSWR                                                     1:1,1typ, max 1:1,3
Output PWR                                                          ME4T-PRO=30W, variable from 5W to peak PWR
TX harmonics                                                        min. -70dB
IM3                                                                       -33dBc/ 25W output
PTT  control                                                          Contact closure to GND
SND output                                                           Open collector, +50V/1A max.
RF VOX                                                               Available, starts >27dBm IF input
RX noise figure @ 20C                                          1dB ( overall)
RX gain                                                                 max 22dB ( variable)
RX OIP3                                                               typ. +25dBm, min. +22dBm
RX  IP3                                                                 typ. +3dBm
Image rejection                                                      >85dB
Dimensions                                                            240x260x70mm ( incl. optional fans)
Weight                                                                  1.6kg
Case                                                                      Iron plate, @1mm
